Diffusive shock acceleration at moving shocks
DSA is often considered in the frame where the shock is at rest. In that frame, the Rankine-Hugoniot conditions are valid and the downstream speed is \(1/q\) times the upstream speed. In this example notebook we use CRPropas time-dependent advection fields to simulate a 1D planar shock moving shock in the lab frame. We compare the time-dependent spectra at the shock with the same scenario but in the stationary frame.
[1]:
%matplotlib inline
from crpropa import *
import numpy as np
import pandas as pd
import matplotlib.pyplot as plt
marker = ['.', 's', '^', 'v', '<', '>', 'd', '8']
1D planar moving shock
Simulation in lab frame with shock moving with speed \(v_{\mathrm{sh}} = 1\) in an undisturbed medium \(v_0 = 0\). The postshock speed is, thus, \(v_1 = 3/4 v_{\mathrm{sh}}\).
Simulation in stationary frame with \(u_{\mathrm{sh}} = 0\), thus, \(u_0 = - 1\) is upstream and \(u_1 = - 1/4\) is downstream.
For constraints on the shock width and time step, see “diffusive-shock-acceleration” example.
[2]:
def DSA_MovingShock(lab, N, vsh = 1, q = 4, Tmax = 100, Nobs = 100):
# Advection field:
v0 = 0. # preshock
u0 = v0 - vsh # upstream
u1 = 1./q * u0 # downstream
v1 = u1 + vsh # postshock, = 3/4 vsh for q = 4
l_sh = 0.01 # shock width
if lab == True:
adv = OneDimensionalTimeDependentShock( vsh, v1, v0, l_sh)
else:
adv = OneDimensionalTimeDependentShock( 0, u1, u0, l_sh)
# Adiabatic cooling module for heating at shock:
ac = AdiabaticCooling(adv)
# Diffusion along x-axis
Bfield = UniformMagneticField(Vector3d(1, 0, 0) * nG)
Type = nucleusId(1,1)
E0 = GeV
kappa = 1. # diffusion coefficient
dt = 0.005 # time-step
minStep = dt * c_light
maxStep = minStep
epsilon = 0 # anisotropy of diffusion coefficient
alpha = 0 # energy-dependence of diffusion coefficient
diffSDE = DiffusionSDE(Bfield, adv, 0.001, minStep, maxStep, epsilon)
diffSDE.setAlpha(alpha)
diffSDE.setScale(kappa / (6.1e24))
# Time Observer in shock region
outShock = TextOutput('MovingShock_lab=%i.txt' % (lab))
outShock.disableAll()
outShock.enable(Output.TrajectoryLengthColumn)
outShock.enable(Output.CurrentEnergyColumn)
outShock.enable(Output.CurrentPositionColumn)
outShock.enable(Output.WeightColumn)
outShock.setLengthScale(meter)
outShock.setEnergyScale(GeV)
Dmin = 10 * dt * c_light
Dmax = Tmax * c_light
N_obs = Nobs
deltaD = (Dmax - Dmin)/N_obs
obsShock = Observer()
obsShock.add(ObserverTimeEvolution(Dmin, deltaD, N_obs))
obsShock.onDetection(outShock)
obsShock.setDeactivateOnDetection(False)
# Maximum integration time
maxTra = MaximumTrajectoryLength(Dmax)
# Source in preshock medium
source = Source()
xmax = vsh * Tmax
if lab == False:
source.add(SourcePosition(Vector3d(0, 0, 0) )) # Injection at the shock
else:
source.add(SourceUniformBox(Vector3d(0, 0, 0), Vector3d(xmax, 0, 0))) # Injection along x-axis in undisturbed medium
source.add(SourceEnergy(E0))
source.add(SourceParticleType(Type))
source.add(SourceIsotropicEmission())
# Splitting
E_min = 5*E0 #minimal energy for splitting
factor = 5 #number of energy bins/maximal splitting
spectrum = -2
splitting = CandidateSplitting(spectrum, E_min, factor)
m = ModuleList()
m.add(diffSDE)
m.add(ac)
m.add(splitting)
m.add(maxTra)
m.add(obsShock)
m.setShowProgress(True)
m.run(source, N)
outShock.close()
[3]:
# Simulate in stationary frame and in lab frame:
Nlab = 10**5 # (increase for better statistics)
DSA_MovingShock(True, Nlab)
Nstat = 10**4
Nobs = 100 # (increase for better statistics)
DSA_MovingShock(False, Nstat, Nobs = 100) # less candidates needed since they can be integrated in time - see Merten et al. 2018, Aerdker et al. 2024
crpropa::ModuleList: Number of Threads: 8
Run ModuleList
Started Tue Aug 13 09:54:06 2024 : [ Finished ] 100% Needed: 00:02:57 - Finished at Tue Aug 13 09:57:03 2024
crpropa::ModuleList: Number of Threads: 8
Run ModuleList
Started Tue Aug 13 09:57:03 2024 : [ Finished ] 100% Needed: 00:00:19 - Finished at Tue Aug 13 09:57:22 2024
[7]:
# Load data
columns = ['D', 'E', 'X', 'Y', 'Z', 'W']
lab = True
file = 'MovingShock_lab=%i.txt' % (lab)
df = pd.read_csv(file, comment='#', delimiter = '\t', names = columns )
df["T"] = df["D"]/(c_light)
del df['D'], df['Y'], df['Z']
lab = False
file = 'MovingShock_lab=%i.txt' % (lab)
df1 = pd.read_csv(file, comment='#', delimiter = '\t', names = columns )
df1["T"] = df1["D"]/(c_light)
del df1['D'], df1['Y'], df1['Z']

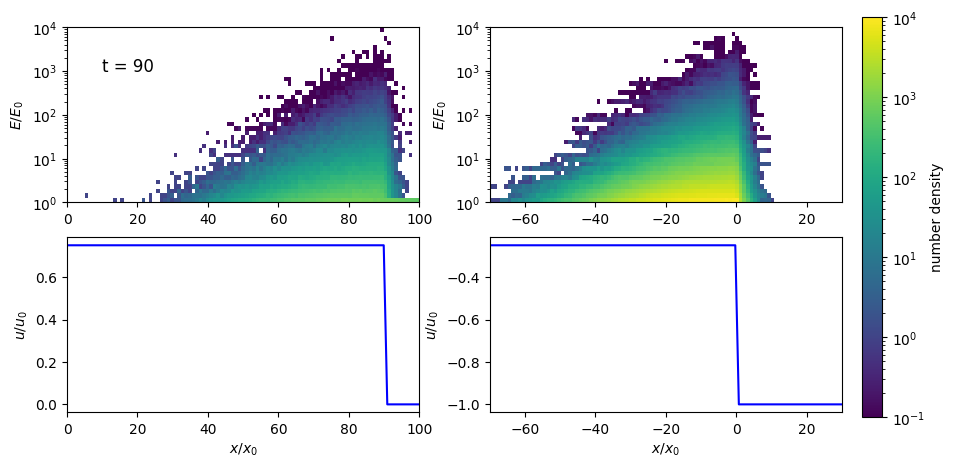

Animation of particle acceleration at moving shock vs. stationary shock frame:
[8]:
import matplotlib.animation as animation
import matplotlib.colors as mcolors
fig, (ax, ax2) = plt.subplots(2,2, figsize = (10, 5 ))
ax[0].set_yscale('log')
ax[0].set_ylabel(r'$E/E_0$')
ax2[0].set_ylabel(r'$u/u_0$')
ax2[0].set_xlabel(r'$x/x_0$')
ax2[0].set_xlim([0, 100])
ax[1].set_yscale('log')
ax[1].set_ylabel(r'$E/E_0$')
ax2[1].set_ylabel(r'$u/u_0$')
ax2[1].set_xlabel(r'$x/x_0$')
ax2[1].set_xlim([-70, 30])
# bins in energy and space:
Ebins = 10**np.linspace(0, 4, 40)
Xbins = np.linspace(0, 100, 100) # moving bins
Xbins1 = np.linspace(-70, 30, 100) # stationary bins
# colorbar limits:
vmin = .1
vmax = 10**4
Tmax = 100
timesteps = np.linspace(1, Tmax, 20)
dt = Tmax/100
ims = [] # for animation
# plot advection field along E-X-hostogram:
vsh = 1
v0 = 0.
u0 = v0 - vsh
u1 = 1./4 * u0
v1 = u1 + vsh # = 3/4 vsh for q = 4
l_sh = 0.01
adv = OneDimensionalTimeDependentShock( vsh, v1, v0, l_sh)
adv1 = OneDimensionalTimeDependentShock( 0, u1, u0, l_sh)
for i in range(len(timesteps)):
dfT = df.loc[(df['T'] <= timesteps[i] + dt) & (df['T'] > timesteps[i])]
counts, xedges, yedges, im = ax[0].hist2d(dfT['X'], dfT['E'], bins = [Xbins, Ebins], weights = dfT['W'], norm=mcolors.LogNorm(vmin=vmin, vmax=vmax), cmap = 'viridis')
advField = np.zeros_like(Xbins)
advField1 = np.zeros_like(Xbins1)
for j in range(len(Xbins)):
x = Xbins[j]
advField[j] = adv.getField(Vector3d(x, 0., 0.), timesteps[i])[0]
dfT = df1.loc[(df1['T'] <= timesteps[i] + dt )]
counts, xedges, yedges, im5 = ax[1].hist2d(dfT['X'], dfT['E'], bins = [Xbins1, Ebins], weights = dfT['W'], norm=mcolors.LogNorm(vmin=vmin, vmax=vmax), cmap = 'viridis')
for j in range(len(Xbins)):
x = Xbins1[j]
advField1[j] = adv1.getField(Vector3d(x, 0., 0.), timesteps[i])[0]
im2, = ax2[0].plot(Xbins, advField, label = 't = %i' %(timesteps[i]), color = 'blue')
im4, = ax2[1].plot(Xbins1, advField1, label = 't = %i' %(timesteps[i]), color = 'blue')
im3 = ax[0].text(10,1000, 't = %i' %(timesteps[i]), fontsize=12)
ims.append([im, im2, im3, im4, im5])
# Create a new axes for the colorbar
cbar_ax = fig.add_axes([0.92, 0.1, 0.02, 0.8])
# Add the colorbar to the new axes
fig.colorbar(im, cax=cbar_ax, label='number density')
ani = animation.ArtistAnimation(fig, ims, interval=200, blit=True,
repeat_delay=1000)
# SAVE ANIMATION WHEN MATPLOTLIB INLINE DOES NOT SHOW THE ANIMATION:
#ani.save("DSA.mp4")

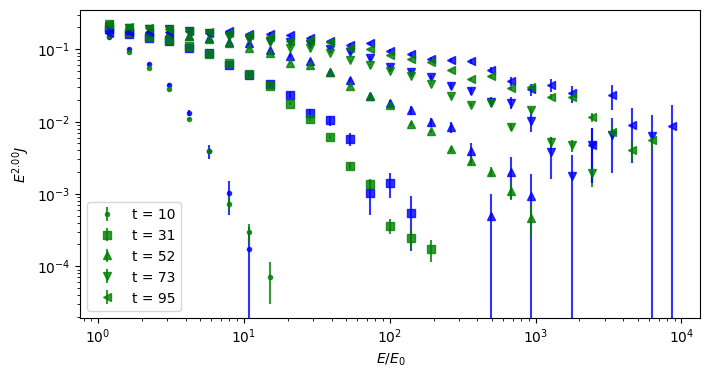

Compare the spectra at the shock over time:
[9]:
def energy_spectrum(df, bins, weighted = False):
# calculates the energy spectrum J, dJ of dataframe df
# returns touple (N, dN, bin_center)
# weights are taken into account if weighted == True
if weighted:
HW = np.histogram(df['E'], bins = bins, weights = df["W"])
H = np.histogram(df['E'], bins = bins)
bin_edges = H[1]
bin_width = bin_edges[1:] - bin_edges[:-1]
bin_center = bin_edges[:-1] + 0.5 * bin_width
if weighted:
J = HW[0]/bin_width
dJ = J/np.sqrt(H[0])
else:
J = H[0]/bin_width
dJ = np.sqrt(H[0])/bin_width
return J, dJ, bin_center
fig, axs = plt.subplots(1, 1, figsize = (8, 4), sharex = True, sharey = True)
bins = 10**np.linspace(0, 4, 30)
timesteps = np.linspace(10, Tmax-5, 5)
e = 2 # spectrum weighted by E^2
# distance in Myr:
i = 0
dx = 5 # bin around shock
for t in timesteps:
xsh = vsh * t # shock position moves
J, dJ, bin_center = energy_spectrum(df.loc[ (df['X'] >= xsh - dx) & (df['X'] < xsh) & (df['T'] <= t + dt) & (df['T'] > t )], bins, weighted = True)
axs.errorbar(bin_center, J*bin_center**e/Nlab, yerr = dJ*bin_center**e/Nlab, linestyle = '', marker = marker[i], color = 'blue', alpha = .8)
# J, dJ normalized by number of candidates
xsh = 0
J, dJ, bin_center = energy_spectrum(df1.loc[ (df1['X'] >= xsh - dx) & (df1['X'] < xsh) & (df1['T'] <= t + dt)], bins, weighted = True)
axs.errorbar(bin_center, J*bin_center**e/(Nstat * Nobs) , yerr = dJ*bin_center**e/(Nstat * Nobs) , linestyle = '', marker = marker[i], color = 'green', alpha = .8, label = 't = %i' %t)
# J, dJ normalized by number of candidates & integration steps
i = i + 1
axs.set_xscale('log')
axs.set_yscale('log')
axs.set_ylabel(r'$E^{%.2f} J$' %e)
axs.set_xlabel(r'$E/E_0$')
axs.set_xlabel(r'$E/E_0$')
axs.legend()
plt.show()
/var/folders/hm/8552yhb509l530c14llpb1ym0000gn/T/ipykernel_90359/2636325046.py:16: RuntimeWarning: invalid value encountered in divide
dJ = J/np.sqrt(H[0])
Spectrum and acceleration time of stationary simulation (green) and moving shock (blue) are the same.
